ViscoLab PVT+

The Gold Standard for PVT Viscosity Measurements

ViscoLab PVT+ is Ideal for High-Pressure and High-Temperature Viscosity Measurements

Excellent Viscosity Range Icon

Viscosity Range: 0.02-20,000cP

Pressure Range Icon

Pressure Range: 30,000 PSI (Higher on request)

icon green thermometer

Temperature Range: Up to 315°C (599°F)

Volume Icon

Volume: 6 mL

Measures gas and gas condensates icon

Wetted Parts: Inconel and Hastelloy

Download the PVT+ Brochure
ViscoLab PVT+
ViscoLab PVT+ YouTube Video

Watch the ViscoLab PVT+ Video

Watch the Video

High-Pressure and High Temperature Viscosity Measurement



Specifications
Overall viscosity 0.02 to 20,000 centipoise (cP)
Piston Range 50:1 Dynamic range
Accuracy ± 1.0% of full scale
Repeatability ± 0.8% of reading
Temperature sensor PT100
Wetted materials Inconell 718 / C276 Hastelloy
Maximum particle size 25-360 microns
Maximum temperature  315°C \ (600°F)
Maximum pressure 30,000 PSI (2068 bar), higher upon request
Power 100-240 VAC/50-60Hz

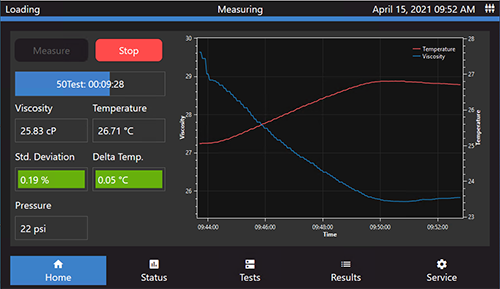

ViscoLab_PVTplus_HomeScreen2

HMI Delivers Streamlined Reporting

Tell The Reader More

The ViscoLab PVT+ offers an intuitive HMI to integrate time-stamped viscosity, pressure, temperature, density, and shear rate data into a graphical format for analysis, storage, and export. An accessory kit is included with each system to support sample loading, system cleaning, and calibration verification.

  • Bullets are great
  • For spelling out benefits and
  • Turning visitors into leads.

Fast and Reliable Viscosity Measurement for Extreme Applications

The ViscoLab PVT+ is the latest in PVT technology by Cambridge Viscosity. This small-yet-powerful viscometer features a touchscreen interface with customizable functions to ensure fast access to the right information. Traditional PVT units, which include a laptop, pressure transducer, hub, air bath, and electronics, take up valuable space where they are installed. The ViscoLab PVT+ is designed for the needs of the laboratory. It combines the user interface, pressure transducer, hub, and electronics in a single, compact enclosure. When mobility is a requirement, the PVT pro fits on a 30”x40” cart, and can be easily transported to other areas or laboratories. Plus, it has a low torque ceiling for easy assembly or disassembly.

With the ability to measure seven unique parameters, PVT+ delivers higher levels of functionality, compared to any other PVT viscometer on the market.

  • Viscosity
  • Pressure
  • Temperature
  • PVT
  • Temperature-compensated viscosity
  • Pressure-compensated viscosity
  • Density
Build Your Own Viscometer
Oil field on a blue sky day

Wider Piston Ranges

Piston ranges in the PVT+ are at a 50-1 span. The span a single piston can cover is 20cP to 1000cP. The wider piston range means you need to change the pistons less often, which saves valuable lab time.

Rapid Thermal Stability

The ViscoLab PVT+ features rapid thermal stability within the temperature control system – which supports the fast return to temperature after system shutdown.

Automated Testing

The ViscoLab PVT+ allows users to design and implement unique testing protocols at different temperatures, which can be triggered to start automatically based on conditional variables.



Sample Stability

Sample degradation can be a result of many things – general handling, changing temperatures and pressures, settling, etc., and when it happens, it can affect viscosity readings. The ViscoLab PVT+ ensures sample stability before it reports the results. The viscometer is programed to receive 20 consecutive readings where the change in viscosity, temperature, and pressure readings are within a user-selectable threshold. This reduces the impact of operator error on viscosity data and ensures a stable sample reading.

User-Friendly Interface

The re-designed user interface has a built-in touchscreen, designed for superior functionality, as well as ease of use. The home screen can be fully customized, so you see the variables that are important to your work.
