ViscoSure

In-Line Viscosity Measurement for Processes

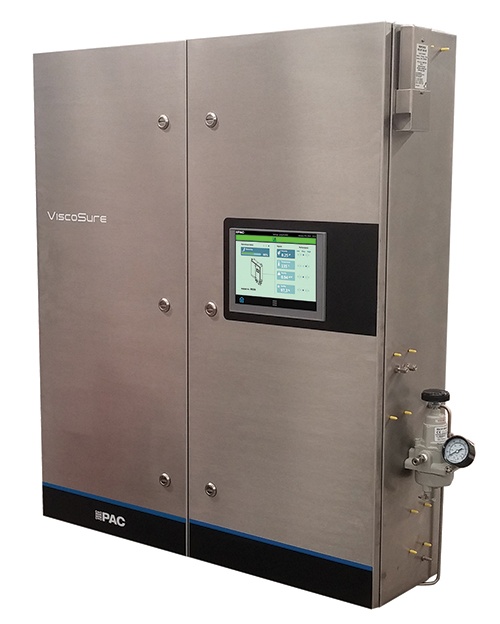

ViscoSure

Process Viscosity Analyzer

In-line viscosity measurement at the product specification temperature increases productivity and facilitates control in difficult processes ViscoSure combines the proven oscillating piston technology with tight temperature control to provide viscosity analysis with unmatched precision. With internal temperature control without using the traditional external oil bath, the ViscoSure is low maintenance with maximum instrument uptime and low cost of ownership. The results obtained correlate to the ASTM D7483 and ASTM D445 test methods. The fast and reliable measurements allow for precise and continuous adjustment of the process, while maintaining a high correlation to laboratory quality control results.

ViscoSure Features and Benefits

  • Tight temperature control without an oil bath reduces maintenance
  • In-line viscosity measurement at the product specification temperature increases productivity and facilitates control in difficult processes
  • Proven, advanced oscillating piston technology reduces downtime
  • Sample conditioning system (SCS) optimizes instrument performance and protects the analyzer from process disruptions

Configuration

  • Configurable process viscometer
  • Designed to meet CSA Class 1 Division 2 Groups C, D and ATEX EX II 3 G
  • Universal voltage
  • Sample Conditioning Systems:
    • Lubes And Heavy Fuels
    • Asphalt

Technical specifications:

Specifications
Power input 100-240 VAC, 12 VDC, 24 VDC, 12 W
Outputs 4 4-20mA; 1 RS232 (standard)/RS485 (optional);
1 5V-TTL alarm; 1 on-off port for alarm or control
Accuracy ± 1.0% of full scale (correlates to ASTM D445)
Repeatability 0.8%
Ranges 0.2-20,000cP (0.2-2cP, 0.25-5cP, 0.5-10cP,
1-20cP, 2.5-50cP, 5-100cP, 10-200cP, 25-500cP, 50-1,000cP, 100-2,000cP, 250-5,000cP,
500-10,000cP, 1,000-20,000cP)
Wetted components Standard 316L/430 Stainless Steel
Optional: Hastelloy and Sanitary Components
Maximum temperature 190°C (sensor); 60°C (display electronics)
Maximum standard operating pressure 1000 psi (70.3 bar)
Optional operating pressure 2000psi (140.2 bar)
Temperature sensor type 4 wire Platinum RTD
Certifications FM, 3A, CE, ATEX - EExdlllC (300 series sensor only) [EEx d IIC T4, -20C<Ta<95C (For SPL Models), EEx d IIC T2, -20C<Ta<190C (For SPL Models)] Factory Mutual - Class 1 Div.1, Group C, D:T3 NEMA4,IP-66
