In-Line Viscometer 372 Flow Through

flow through viscometer

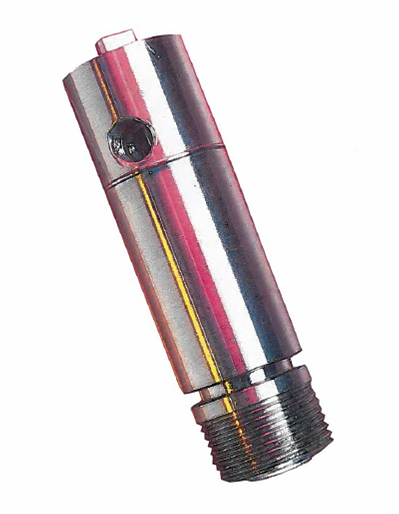

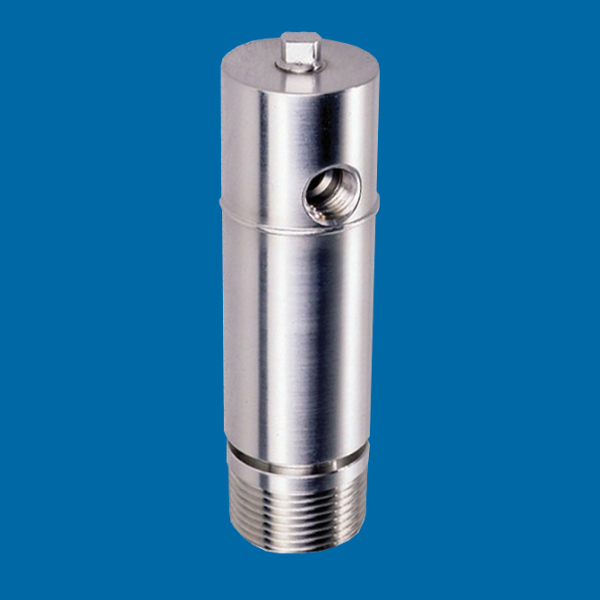

The Model SPC/L372J is a flow-through viscometer that is installed in laboratory and process fluids to provide continuous temperature and viscosity tracking. Our technology is based on a simple and reliable electromagnetic concept. Two coils move a piston back and forth magnetically at a constant force. Proprietary circuitry analyzes the piston’s two-way travel time to measure absolute viscosity.

A deflector, positioned over the piston, moves fluid into the measurement chamber. This feature, coupled with the constant piston motion, keeps the sample fresh and mechanically scrubs the chamber. A built-in temperature detector (RTD) senses actual temperature in the measurement chamber.

The Model SPC/L372J viscometer installs directly into a 1/4” process line using NPT fittings on the sensor. The sensor comes with a removable jacket which can be plumbed with process material for excellent temperature tracking or a separate flow line for temperature control of sample material.

Measurements can be made in 13 different viscosity ranges within an overall span of 0.2 to 20,000 cP or the equivalent cSt. Recommended flow rate over the sensor head is 0.5 to 1.0ft/sec.

*NOTE: ALL ATEX SENSORS ARE SPL ONLY (L = hard wired, C = connector).

Key Features:

• Accurate and reliable  • Rugged stainless steel design  • Easily installed and serviced  • One moving part  • Proven technology  • Jacketed for temperature control  • Installed directly into a 1/4" line

Correlates with ASTM D445.

Approvals/Certifications:

• Approved for Class 1, Div. 1, Group C & D
• Approved for EEx d IIC T2, -20C<Tamb<190C
• Alberta Boilers Safety Association (ABSA) CRN# 0F07232.2

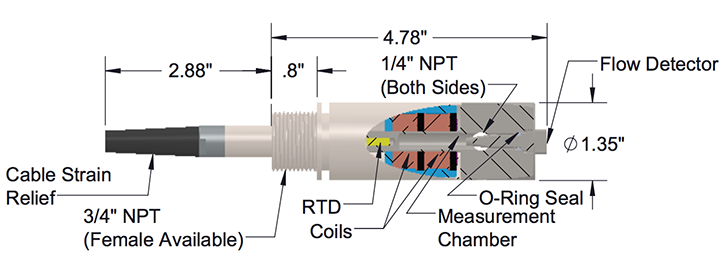

Dimensions:

SPL 372 Drawing.png

Specifications:

Viscosity 0.2 to 20,000 centipoise (cP)
Piston Ranges 0.2-2cP, 0.25-5cP, 0.5-10cP, 1-20cP,
2.5-50cP, 5-100cP, 10-200cP, 25-500cP,
50-1,000cP, 100-2,000cP, 250-5,000cP,
500-10,000cP, 1,000-20,000cP
Viscosity Accuracy ± 1.0% of full scale with VISCOpro 2000
Repeatability ± 0.8% of Reading
Temperature Sensor 4 wire internal Platinum RTD
Wetted Materials 316L and 430 Stainless Steel
Maximum Particle Size 25-360 microns (Range Dependent)
Max Ambient Temperature 375°F (190°C)
Max Operating Pressure 1,000 psi (70.3 bar)
Standard Cable Length 15 feet (4.57 meters)
Power Requires VISCOpro electronics
