VISCOpro System Specification Comparison







  VISCOpro 2000 VISCOpro 2100
Principle of Operation Oscillating Piston Oscillating Piston
ASTM Correlation D445 + D7483 D445 + D7483
Sensor Temperature Range 190⁰C or 375C⁰C 190⁰C or 375⁰C
Temperature Accuracy +/-0.2⁰C +/-0.2⁰C
Viscosity Range* 0.2-20,000cP 0.2-20,000cP
Viscosity Accuracy 1% Full Scale 1% full scale
Repeatability 0.8% of reading 0.5% of reading
Temperature Compensated Viscosity Y Y
Pressure Compensated Viscosity Y Y
Field Calibration Y Y
HMI Y Y
Self Clean / Recovery Y Y
Analog Outputs 3 4

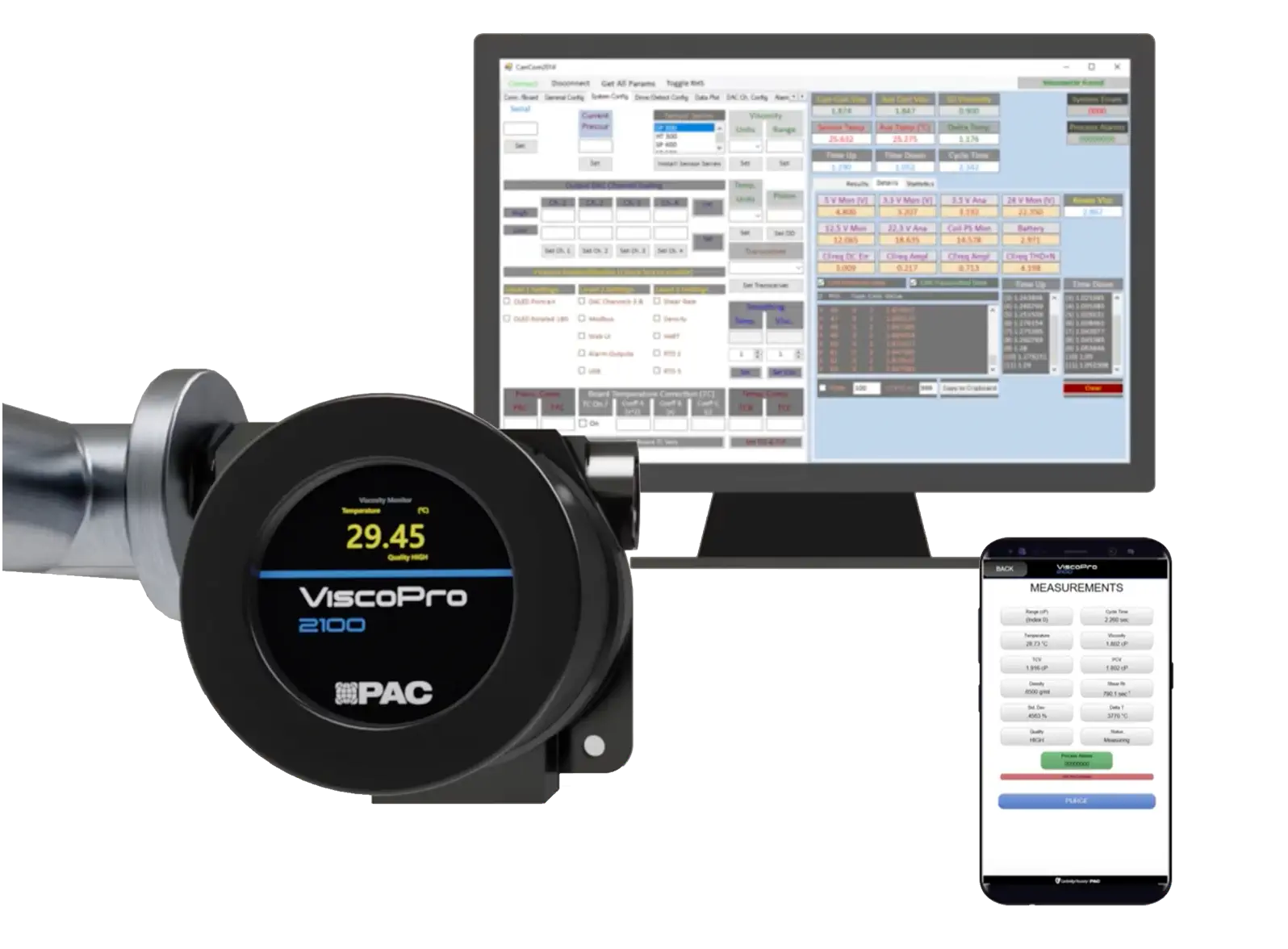

User Interface YES- VISCOlab PVT software Yes- Web browser User Interface
Data Collection RS232/RS485 + 4-20mA Analog Modbus, 4-20mA Analog, TCP/IP
Density(Calculated) N Y
Shear Rate Measurements N Y
Shear Rate Sweep Function N Y
Control Output Signal Y N
Density(Calculated) N Y
Shear Rate Measurements N Y
Shear Rate Sweep Function N Y
Control Output Signal Y N
Alarm Output Y Y
Input power 90-240VAC, 50/60Hz 24VDC
